1. Main Parameters
| Model | HGZ5 | HGZ10 | HGZ20 | HGZ40 | HGZ60 | HGZ80 | HGZ100 | HGZ150 | HGZ200 | |
| Max loading T | 5 | 10 | 20 | 40 | 60 | 80 | 100 | 150 | 200 | |
| Suit diameter mm | Min | 250 | 320 | 500 | 800 | 750 | 850 | 1000 | 1200 | 1500 |
| Max | 2300 | 2800 | 3500 | 4500 | 5000 | 5500 | 6000 | 6500 | 8000 | |
| Rubber Roller mm | Dia | 250 | 300 | 350 | 400 | 450 | 500 | 500 | 550 | 550 |
| Width | 100 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | |
| Metallic roller mm | Dia | 244 | 294 | 344 | 394 | 444 | 494 | 494 | 540 | 540 |
| Width | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 | 100 | |
| Linear speed m/h | 6--60 | |||||||||
| Speed Control | VFD | |||||||||
| Motor power kW | 0.75 | 1.1 | 1.5 | 3 | 4 | 4.4 | 4.4 | 5.5 | 7.5 | |
| Above are our standard models and parameters, and it can be designed and manufactured on request. | ||||||||||
2. Introduction:

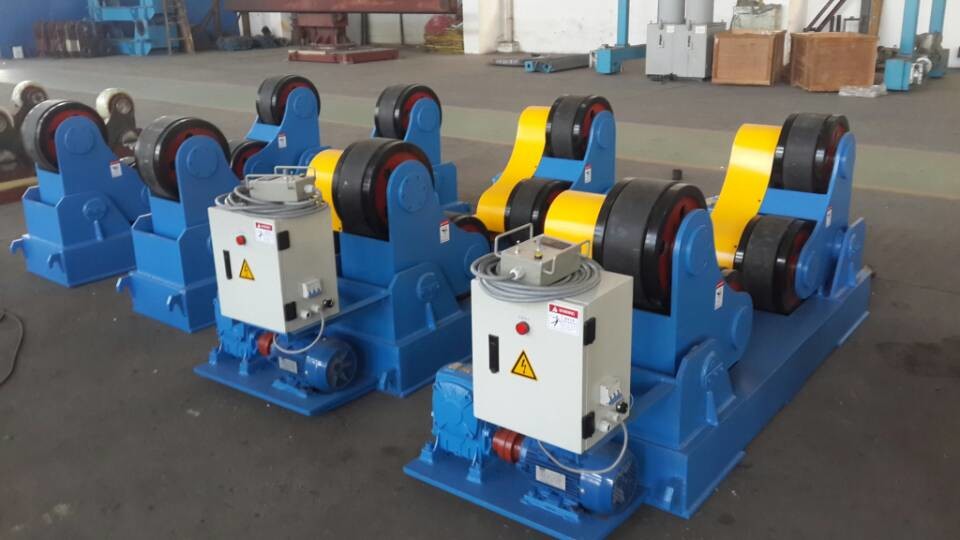

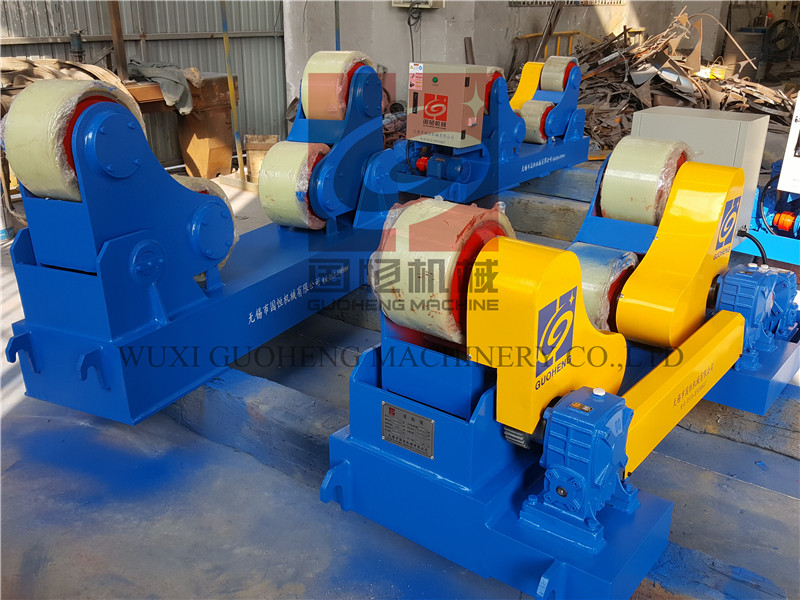

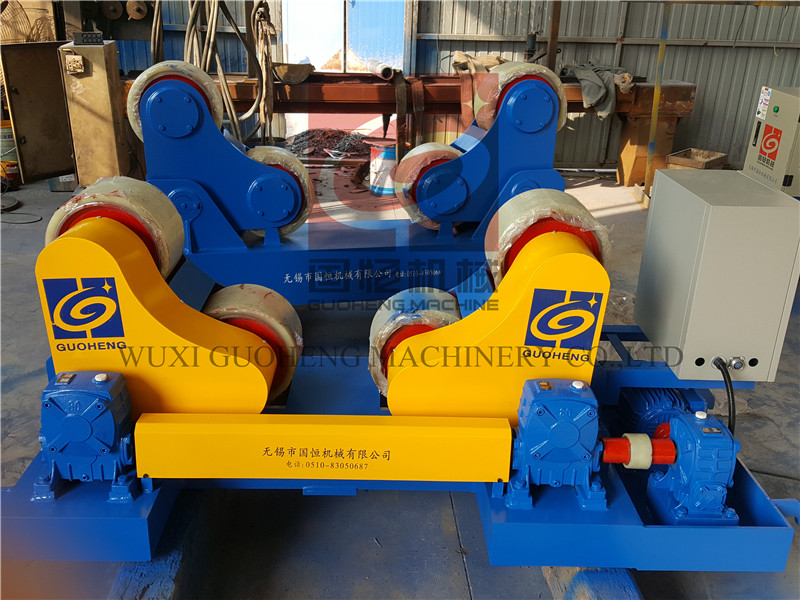

This series is self-alignment/self centering type. These welding rotators are used for the rotation and positioning of heavy, rotationally symmetrical workpieces like tanks, pipes or boilers for further machining or welding.
3. Main features
The standard models of our roller beds have the following features:
France Schneider Inverter and Wireless type Remote Control Box
Optional features:
